Lugs

BB 2T, single-barrel dual-rated Cu/Al mechanical lug, accepts #2–#14 AWG conductors, tin-plated aluminum, 600 Volt 90°C rated. Used for terminating branch-circuit and feeder conductors to bus bars, panels, or mechanical lug blocks.

BB 2-250T, two-hole pad dual-rated Cu/Al mechanical lug, accepts 250 kcmil–#6 AWG conductors, tin-plated aluminum, 600 Volt 90°C rated. Used for large feeder terminations on panelboards, switchboards, or gutter bars.

BB 0T, single-barrel dual-rated Cu/Al mechanical lug, accepts 1/0–#14 AWG conductors, tin-plated aluminum, 600 Volt 90°C rated. Mounting hole provided for equipment or bus bar terminations.

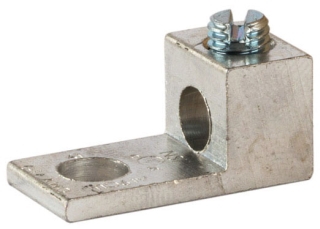

BB 2/0T, single-barrel dual-rated Cu/Al mechanical lug, accepts 2/0–#14 AWG conductors, tin-plated aluminum, 600 Volt 90°C rated. Used for feeder terminations on panel bus bars or equipment lugs.

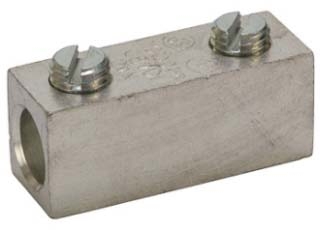

BB 1/0SR, dual-rated Cu/Al two-port mechanical splicer-reducer for 1/0–#14 AWG conductors, pre-filled with oxide inhibitor. Used for inline splicing or reducing conductor sizes in power circuits without soldering.

NSI 250T dual-rated Cu/Al mechanical lug, single barrel, accepts 250 kcmil–#6 conductors, 90°C 600 V class, tin-plated aluminum with mounting hole for terminating feeders on bus bars or enclosures.

BB 2SR, dual-rated Cu/Al two-port mechanical splicer-reducer for #2–#14 AWG conductors, pre-filled with oxide inhibitor. Used for inline splicing or reducing conductor sizes in power circuits without soldering.

BB PAE2121-9, aluminum two-bolt parallel groove clamp for 2/0–#6 AWG conductors. Tin-plated grooves with keeper bar provide reliable mechanical and electrical connection on overhead or bus conductors.

Greaves Electric BTL4-DB Beaver Tooth grounding lug. For connecting grounding conductors to ground rods, flat surfaces, and structural steel in grounding and bonding systems.

BB S12-10V, vinyl-insulated spade terminal for #12–#10 AWG copper wire with #10 stud size. Tin-plated copper barrel for crimp termination in control panels and machine wiring.
